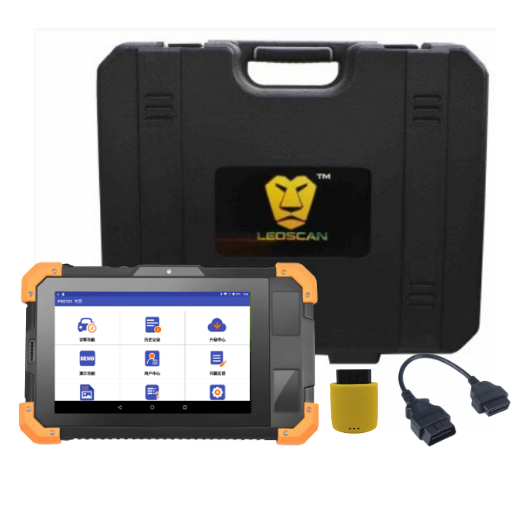

PRO7

PRO7 is a 7-inch intelligent high-definition display touch screen with a full-system automotive diagnostic tester. It has a complete OBD function, common diagnostic functions of the full system and 10+ special functions. It has waterproof, anti-drop and dust-proof functions at the same time. It is sturdy and durable. It can quickly check the cause of the failure of each system of the car, and help you solve the problem effectively.



Functions

  • Covering More Than 120 Major Car Brands: such as BENZ, BMW, VW, Audi, Renault, Ford, GM, Toyota, Honda, Nissan, Suzuki, Hyundai, Kia,etc.
  • Full System Diagnostics: including Engine, Transmission, ABS, SRS, Chassis system, Body system, Door system, Suspension system,etc.
  • General Functions: Read Version Information, Read DTCs&Clear DTCs, Read Live Data.
  • Special Functions: such as BMS Reset, DPF, EPB, Fuel Injection, Key Programming, Odometer Adjustment,Oil Reset, Steering Angle, SuzukiImmo(Optional), TPMS Reset, Throttle sensor.
  • Full OBDII Functions: Read Fault Codes, Erase Fault Codes, Read I/M Readiness, Read Data Stream, Powertrain Freeze Frame Data, Request Vehicle Information, O2 sensor test, On-board monitor test,etc.
  •  Support online upgrade and Bluetooth wireless communication.
  • Multiple Languages: English, Chinese, French, German, Italian, Spanish, Russian, Japanese, Polish, Bulgarian, Portuguese, Finnish.
  • Support OEM, customized according to your market needs.

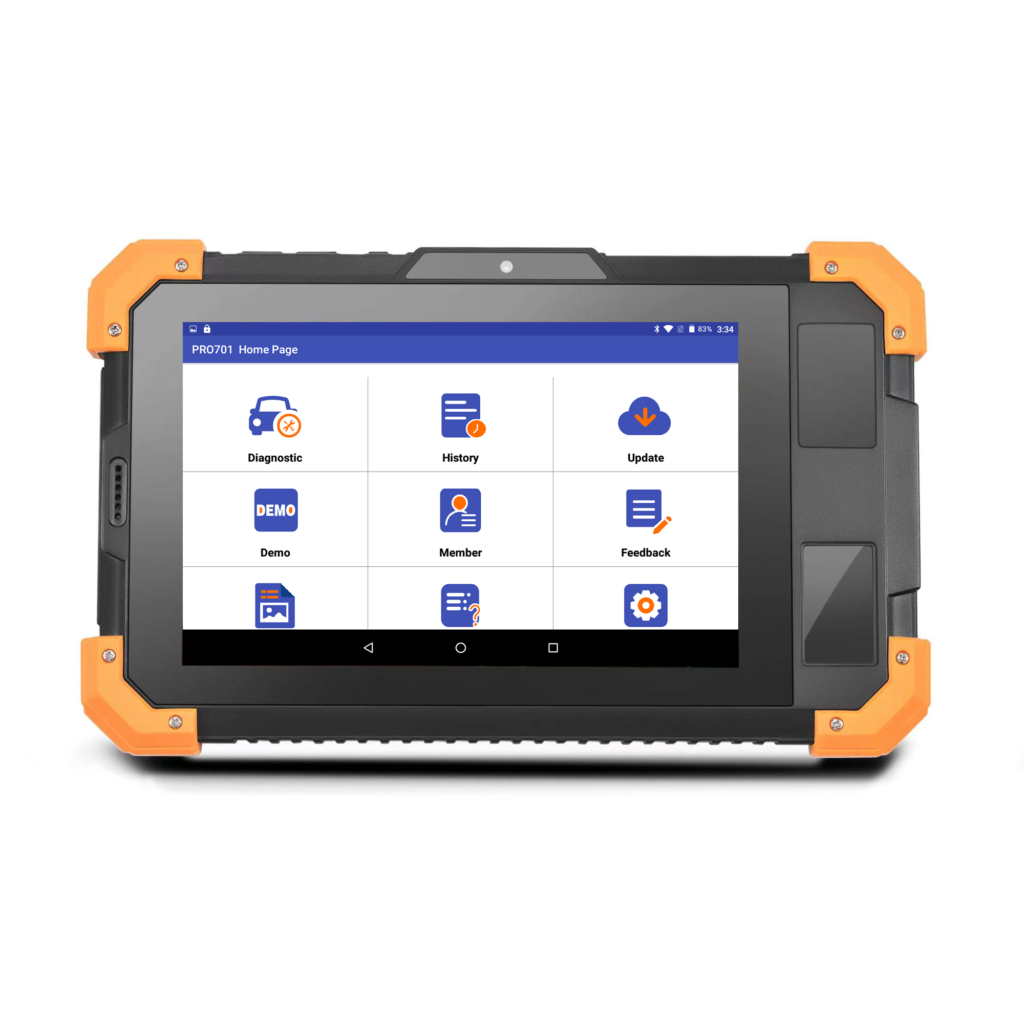

App Functions

  • Diagnostic: The Diagnostic includes all system modules of the entire vehicle and major global Car Brands, covering America, Europe, Asia, Australia, and China.
  • Update: Manage car software upgrades. The user can update the car diagnostic software through manual selection and automatic selection.
  • Demo: Enable users to perform special functions, such as BMS reset, DPF, EPB, fuel injection, key programing, etc.
  • History: Manage historical records, such as recording the information of tested vehicles, operation path, detection system, detection time, etc.
  • Member: Manage user information, such as user account information, user VCI information, and application information.
  • Settings: The user selects the language, font size, unit, server regional settings, etc.
  • Manual: Users can read the user manual to understand the usage and precautions.
  • Feedback&FAQ: User’s online feedback and FAQ description.

Parameters

NameTablet Computer    VCI
OSAndroid       /
Display7 Inches,800×1280,sunlight display      /
CPUQuad core 64bit       /
Memory2+32GB(Support SD/TF card, max 128GB)      /
Camera200W+500W      /
Battery8500mAh      /
IP waterproof, anti-drop and dust-proof      /
Size231.2*142*22.2 mm(LxWxH)73*55*31mm(LxWxH)
Weight561g    60g
Operating Temperature-20°C ~ 60°C-20°C ~ 70°C

Car Brands Coverage

Supports tens of thousands of car models from more than 120 car brands.Including all popular models in America, Europe, Asia, Australia, and China.

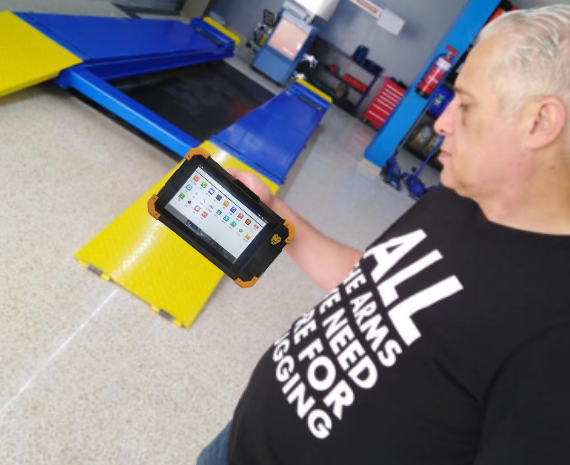

Application Scenarios

Vehicle diagnosis, Maintenance&Repair, Performance optimization, Data record,etc.



Recommended Users

Automotive manufacturer, Maintenance&Repair Shop,Mot Testing Station, Traffic police Station,University_Automotive major, Auto Training Institution, Automotive Service Technician,etc.
